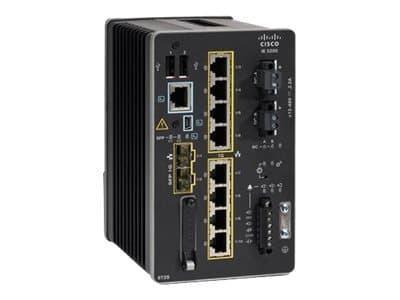

Switch ethernet Cisco Catalyst 8 ports ethernet 10/100/1000Mbps PoE+ + 2 ports 1Gbps fibre SFP, administrable L2 - Référence: IE-3200-8P2S-E

Issue de la gamme des switch Cisco Catalyst, le IE-3200-8P2S-E est un switch ethernet durci 8 ports PoE+ 10/100/1000Mbps plus 2 ports SFP 100/1000Mbps. Entièrement administrable, ce switch hérite de l'ensemble des fonctions de management et d'analyse et la licence Network Essentials. Il est possible en option d'intégrer la suite Cisco DNA pour plus de fonctions avancées.

Ce switch intègre donc 8 ports PoE+ qui peuvent donc proposer jusqu"à 240W de puissances. Il propose un débit gigabit sur l'ensemble de ses interfaces réseau. Afin d'assurer un fonctionnement permanent, il dispose d'une alimentation redondante.

Caractéristiques:
Nombre de ports ethernet: 8 ports
Ports SFP: 2 ports
Manageable ?: Manageable
Débit: 10/100/1000Mbps
Température extrême: Oui
PoE: Oui
Fibre optique: Mono-mode,Multi-mode
Nom de port RJ45: 8
Débit ports RJ45: 10/100/1000Mbps
Nombre de ports SFP: 2
Débit des ports SFP: 100/1000Mbps
PoE: 240W
Stockage optionnel: SD Card
Alarme: 2 alarmes en entrée et une en sortie
Port console: 1 RS-232 (via RJ-45), 1 USB Mini Type B
Alimentation: Alimentation redondance 54V pour PoE+
Courant d'entrée max: 5.5A
Consommation max: sans le PoE 32W
Dimensions: 152 x 91 x 135 mm
Fixation: Rail DIN
Nombre que queues: 8
DRAM: 2GB
Jumbo Frames: 8996 bytes
Licence logicielle Cisco: Network Essentials
Fonction switching Couche 2: IEEE 802.1, 802.3 standard, NTP, UDLD, CDP, LLDP, unicast MAC filter, PAgP, LACP, VTPv2, VTPv3, EtherChannel, Q-in-Q tunneling, voice VLAN, PVST+, MSTP, and RSTP
Multicast: IGMPv1, v2, v3 snooping, IGMP filtering, IGMP querier
Administration: WebUI, MIB, SmartPort, SNMP, syslog, DHCP server, SPAN session, RSPAN, FSPAN, Express setup, NETCONF, RESTCONF
Sécurité: Port security, 802.1x, Dynamic Host Configuration Protocol (DHCP) snooping, dynamic ARP inspection, IP source guard, guest VLAN, MAC authentication bypass, 802.1x multidomain authentication, storm control - unicast, multicast, broadcast, SCP, SSH, SNMPv3, TACACS+, RADIUS server/client, MAC address notification, BPDU guard, SUDI 2099 (Secure Unique Device identifier), Access Lists (PACL/RACL/VACL), MACsec-128
QoS (Qualité de service): Ingress policing, rate limit, egress queuing and shaping, auto QoS
IPv6: IPv6 host support, SNMP over IPv6, HTTP/HTTP(s) over IPv6, SNMP over IPv6, Syslog over IPv6, DHCPv6 relay source, DHCPv6 bulk lease query (RFC 5460), IPv6 stateless Auto Config, SCP/SSH, Radius, TACACS+, NTP over IPv6, IPV6 ND cache expire, IPv6 support for TFTP, IPv6 DNS transport, IPv6 QoS, IPv6 FHS RA Guard, IPv6 FHS DHCPv6 Guard
Routing Layer 3: Inter-VLAN routing, static routing
Ethernet industriel et protocoles: CIP Ethernet/IP, IEEE 1588 PTP v2 (default and power), PROFINET
Redondance: Resilient Ethernet Protocol (REP) ring, PROFINET-Media Redundancy Protocol (MRP), REP Preferred, Fast REP
Fonctions: Dying gasp, SCADA protocol classification - GOOSE messaging, MODBUS TCP/IP
Automatisme: YANG, NETCONF, RESTCONF
Option CISCO DNA Essentials - Outils de gestion: Discovery, topology, inventory, software image management
Option CISCO DNA Essentials - Suivi: Health Dashboards - Network, Client, Basic Switch and Wired Client Health Monitoring, Compliance, Custom Reports, Device 360 and Wired Client 360
Automatisme: Cisco Network Plug-and-Play application
Conformité industriel et contrôle d'automatisme: IEC 62443-4-1, IEC 62443-4-2
Conformité emissions électromagnétique: FCC 47 CFR Part 15 subpart B Class A, EN 55032/CISPR 32 Class A, VCCI Class A, AS/NZS CISPR 32 Class A, CISPR 11 Class A, ICES 003 Class A, CNS 13438 Class A, KN 32 Class A, EN 300 386
Conformité protection électromagnétique: CISPR 24, EN 55024, KN 35, EN 61000-4-2 Electro Static Discharge (air - 15kV, contact - 8kV), EN 61000-4-3 Radiated RF (10V/m UTP, 20V/m STP), EN 61000-4-4 Electromagnetic Fast Transients (4kV), EN 61000-4-5 Surge (2KV/1KV Power, 4KV STP), EN 61000-4-6 Conducted RF (10Vrms UTP), EN 61000-4-10 Damped Oscillatory Magnetic Field (100 A/m), EN 61000-4-16 Conducted CM Disturbances (30V, Cont/300V, 1 sec), EN 61000-4-17 Ripple Immunity DC Power (10%), EN 61000-4-18 Damped Oscillatory Wave (2.5kV, 1MHz), EN-61000-4-29 DC Voltage Dips and interruptions
Conformité aux standards industriels: EN 61000-6-2 Industrial Immunity, EN 61000-6-4 Industrial Emissions, EN 61000-6-1 Light Industrial Immunity, EN 61326-1 Measurement, Control and Laboratory Equipment, IEEE 1613 Electric Power Stations Communications Networking, EN/IEC 61850-3 Electric Substations Communications Networking, EN50121-4 Railway - Signaling and Telecommunications Apparatus, EN50155- Railway applications - Rolling stock, ODVA Industrial EtherNet/IP, NEMA TS 2-2016, IP30
Conformité Marine 1: DNC Certification according to class guideline DNV-CG-0339, IEC 60945, IACS UR E10
Normes et certifications: UL/CSA 60950-1, IEC 60950-1 CB, UL/CSA 62368-1, IEC 62368-1 CB, UL/CSA 61010-2-201, CB report and certificate to IEC/EN 61010-2-201, UL121201 (Class l, Div 2, groups A-D), CSA 213 (Class l, Div 2, groups A-D), UL/CSA 60079-0, -15 (Class l, Zone 2, Gc/IIC), IEC 60079-0, -15 IECEx test report (Class l, Zone 2, Gc/IIC), EN 60079-0, -15 ATEX certificate (Class l, Zone 2, Gc/IIC) Cabinet enclosure required
Température de fonctionnement compatible: -40°C to +70°C
Taux d'humidité: IEC 60068-2-78, IEC 60068-2-30
Résistance chocs et vibrations: IEC 60068-2-27, MIL-STD-810, Method 514.4,IEC 60068-2-6
Résistance à la corrosion: IEC 60068-2-52, IEC 60068-2-60
SKU: IE-3200-8P2S-E
Fabricant (Marque): CISCO
