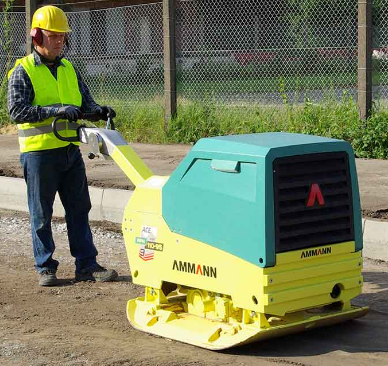

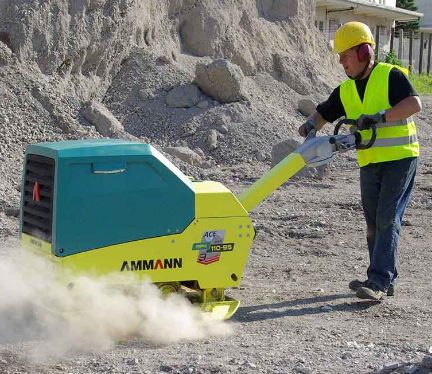

Plaques vibrantes ammann aph 110-95 hydrostatic vibratory plate

The APH 110-95 is the premiere vibratory plate compactor in the Ammann lineup.
At 778 kg it is the heaviest plate. Yet the machine has a traveling speed beyond many soil compactors thanks to a powerful Kubota diesel engine, which also meets strict emissions standards.
The vibratory plate still features the Ammann triple-shaft exciter system that enables compaction and climbing ability while making the machine easy to handle.
The APH 110-95 is built for professionals with most features ? including the ACEecon compaction measuring system ? standard.
APH 110-95
Weights & Dimensions Metric US
Machine weight basic unit 778 kg 1698 lb
with extension plates 75 mm 807 kg 1753 lb
with extension plates 150 mm 830 kg 1808 lb
A = Base plate length 520 mm 20,5 in
B = Machine length 1070 mm 42,1 in
C = with handle 1965 mm 77,4 in
D = Machine heigth 1000 mm 39,4 in
E = Handle height (work) 1200 mm 46 in
F = Handle height (transport) 1600 mm 63 in
G = Machine width 650 mm 26 in
H = with extension plates 800/950 mm 31/37 in
Engine
Engine Kubota D1105 Kubota D1105
Fuel Diesel Diesel
Engine Output 23,8 HP / 17,5 kW 23,8 HP / 17,5 kW
at RPM 3000 3000
Fuel consumption 4,5 l/h 1,1 gal/h
Compaction Forces
Max, Vibration frequency 48 Hz 2900 vpm
Max, Centrifugal force 110 kN 24 lbf
Working surface basic unit 1400 m2/h 15500 ft2/h
with extensions 1720/2050 m2/h 19050/19805 ft2/h
Max. compaction depth * 110 cm 24 in
Miscellaneous
Speed 37 m/min 1 mph
Tank capacity 16,5 l 4,4 gal
Gradeability 35% 0,35
Max. incline to all sides 30° 30°
* depending on ground conditions
