![Plaques vibrantes ammann aph 100-20 675 kg_0](https://www.hellopro.fr/images/produit-2/2/4/7/plaques-vibrantes-ammann-aph-100-20-675-kg-6067742.png)

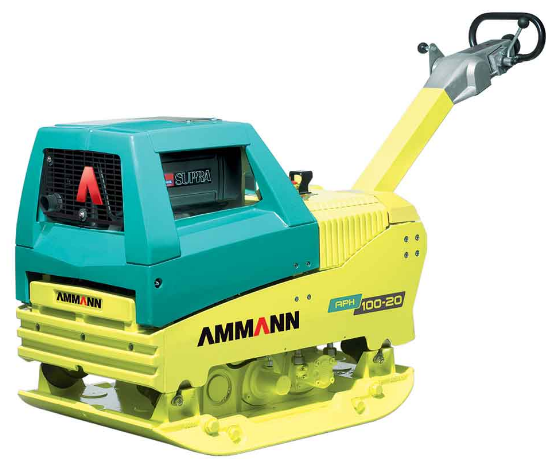

Plaques vibrantes ammann aph 100-20 675 kg
![Plaques vibrantes ammann aph 100-20 675 kg_0](https://www.hellopro.fr/images/produit-2/2/4/7/plaques-vibrantes-ammann-aph-100-20-675-kg-6067742.png)
Description
The weight of the APH 100-20 combines with the industry-leading triple-shaft exciter system to provide performance, climbing ability and responsiveness.
The vibratory plate weighs in at 675 kg. Several options, such as extension plates, operation hour meter and dead man?s handle allow for customisation to make the plate fit your particular needs.
The optional ACEforce compaction measuring system is another key tool many contractors utilise in efforts to achieve thorough, efficient compaction results.
APH 100-20
Weights & Dimensions Metric US
Machine weight basic unit 675 kg 1499 lb
with extension plates 75 mm 704 kg 1554 lb
with extension plates 150 mm 727 kg 1609 lb
A = Base plate length 520 mm 20,5 in
B = Machine length 1070 mm 42,1 in
C = with handle 1965 mm 77,4 in
D = Machine heigth 900 mm 35,4 in
E = Handle height (work) 1000 mm 39,4 in
F = Handle height (transport) 1500 mm 60,8 in
G = Machine width 650 mm 26 in
H = with extension plates 800/950 mm 31/37 in
Engine
Engine Hatz 1D90S Hatz 1D90S
Fuel Diesel Diesel
Engine Output 14,8 HP / 10,9 kW 14,8 HP / 10,9 kW
at RPM 2900 2900
Fuel consumption 2,5 l/h 0,6 gal /h
Compaction Forces
Max, Vibration frequency 40 Hz 2400 vpm
Max, Centrifugal force 100 kN 22 lbf
Working surface basic unit 1090 m2/h 11733 ft2/h
with extensions 1350/1600 m2/h 14531/17222 ft2/h
Max. compaction depth * 100 cm 22 in
Miscellaneous
Speed 28 m/min 1 mph
Tank capacity 10 l 2,2 gal
Gradeability 0,36 0,36
Max. incline to all sides 30° 30°
* depending on ground conditions
The vibratory plate weighs in at 675 kg. Several options, such as extension plates, operation hour meter and dead man?s handle allow for customisation to make the plate fit your particular needs.
The optional ACEforce compaction measuring system is another key tool many contractors utilise in efforts to achieve thorough, efficient compaction results.
APH 100-20
Weights & Dimensions Metric US
Machine weight basic unit 675 kg 1499 lb
with extension plates 75 mm 704 kg 1554 lb
with extension plates 150 mm 727 kg 1609 lb
A = Base plate length 520 mm 20,5 in
B = Machine length 1070 mm 42,1 in
C = with handle 1965 mm 77,4 in
D = Machine heigth 900 mm 35,4 in
E = Handle height (work) 1000 mm 39,4 in
F = Handle height (transport) 1500 mm 60,8 in
G = Machine width 650 mm 26 in
H = with extension plates 800/950 mm 31/37 in
Engine
Engine Hatz 1D90S Hatz 1D90S
Fuel Diesel Diesel
Engine Output 14,8 HP / 10,9 kW 14,8 HP / 10,9 kW
at RPM 2900 2900
Fuel consumption 2,5 l/h 0,6 gal /h
Compaction Forces
Max, Vibration frequency 40 Hz 2400 vpm
Max, Centrifugal force 100 kN 22 lbf
Working surface basic unit 1090 m2/h 11733 ft2/h
with extensions 1350/1600 m2/h 14531/17222 ft2/h
Max. compaction depth * 100 cm 22 in
Miscellaneous
Speed 28 m/min 1 mph
Tank capacity 10 l 2,2 gal
Gradeability 0,36 0,36
Max. incline to all sides 30° 30°
* depending on ground conditions
Caractéristiques
Type
plaque vibrante
Type de moteur
Thermique
Usage
Trottoir/Piste
