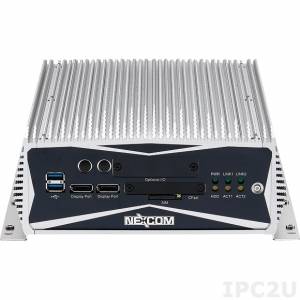

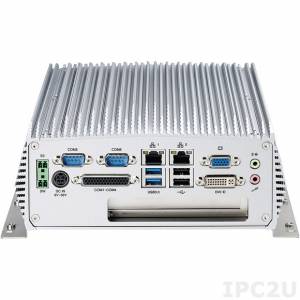

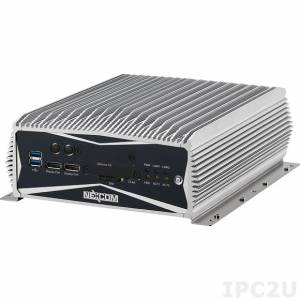

PC industriel Nexcom - NISE-3600E Fanless Embedded Server Intel Core i3/i5 CPU 8GB DDR3 RAM

PC industriel Nexcom
- Fanless Embedded Server, support 3rd gen. Intel Core i3/i5 CPU, up to 8GB DDR3 RAM, VGA, DVI-D, 2xDisplay Port, 2xGbE LAN, 6xUSB, 6xCOM, w/o Audio, CFast Socket, 2.5" SATA HDD Bay, Mini-PCIe, PCIe x4, 9..30V DC-In
- Constructeur: NEXCOM
- Construction Chassis: Châssis Aluminium
- Configuration Montage: Desktop, Montage mural
- Type processeur Supporté: Intel Celeron B810, Intel Core i3-3120ME, Intel Core i5-2510E, Intel Core i5-3610ME
- Type: Fanless
- Température: -5 ... 55 °C
- Chipset: Intel QM77
- Type de mémoire: DDR3 RAM
- Max. Mémoire: 8 GB
- ECC: Non
- Controleur graphique: Intégré au processeur
- Type connecteur: Intel 82574L 10/100/1000 Mbps, Intel 82579LM 10/100/1000Mbps
- Total Ethernet: 2
- 10/100/1000 Mbit/s: 2
- Total COM: 6
- RS-232: 5
- RS-232/422/485: 1
- Total USB: 6
- USB 2.0: 2
- USB 3.0: 4
- Canal SATA3: 2
- CFast Socket: Yes
- Nombre de baies de stockage: 1
- 2.5" Baie Interne: 1
- Total: 2
- PCI Express x4: 1 (max length 169mm (10W/slot))
- Mini-PCIe/Mini Card: 1 (support optional WiFi or 3.5G module)
- Quantité SIM Holder: 1
- Type: Fanless
- Connecteurs: 2xDB9, DB44, DVI-D, DB15 VGA, 2xRJ45, 6xUSB, Mic In, Line Out, DC Input, 2xDisplayPort
- Entrée Voltage DC: 9 ... 30 V
- Largeur: 215 mm
- Hauteur: 93 mm
- Profondeur: 272 mm
- Température: -5 ... 55 °C (Ambient with air flow)
- Humidité: ... 95 % (Relative humidity at 40C)
- Vibration: Random: 0.5Grms @ 5~500 Hz
- Chocs: HDD: 20G, half sine, 11ms
- Certifications: CE, FCC Class A
- Protocole sécurité: UL/cUL
- Nom: NEXCOM
- Poids brut: 6.795 kg
- Poids net: 4 kg
