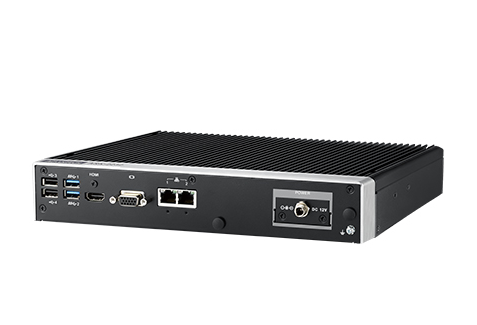

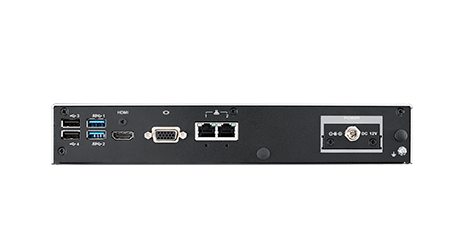

PC industriel Advantech ARK-2232L A2 - Fanless modulaire Intel Atom E3940 Double affichage 4k

PC industriel Advantech

ARK-2232L A2
PC embarqué Fanless modulaire, Intel Atom E3940
Double affichage 4k, plage de températures étendue, large plage de tension d‘entrée
M.2, miniPCIe avec slot SIM
Caractéristiques et Datasheets
Fabricant Advantech
Processeur Intel Atom E3940 1.6 GHz
RAM 1 x DDR3L-1866 jusqu'à 8Go
Stockage 1 x baie 2.5" SATA III
1 x mSATA
Interface 2 x GbE
2 x USB 3.0
4 x USB 2.0
2 x RS-232 ports
2 x RS-232/422/485
1 x Full-size mPCIe avec slot SIM
1 x M.2 key-E (2230)
8 x GPIO
Interface Vidéo 1 x VGA
1 x HDMI
Température de fonctionnement -20 ~ +60 °C
Tension d’entrée 12V (9~36V avec module optionel)
Dimensions 260 x 44 x 140.2 mm
ARK-2232L-S6A2
Intel Atom E3940 1.6 GH
Extension iDoor
MOS-2220-X1101E
Parallel LPT module, 1-Ch, USB Interface
MOS-2110Z-1201E
USB module, 2-Ch, PCIe Interface
MOS-2120-Z1101E
Giga LAN Ethernet module, 1-Ch, PCIe Interface
MOS-1120Y-0202E
Isolated RS-232, 2-Ch, DB9, PCIe Interface
MOS-1121Y-0202E
Isolated RS-422/485, 2-Ch, DB9, PCIe Interface
MOS-1120Y-1402E
Non-Isolated RS-232, DB37 to 4-ch DB9, PCIe Interface
MOS-1121Y-1402E
Non-Isolated RS-422/485, DB37 to 4-ch DB9, PCIe Interface
MOS-1130Y-0201E
Isolated CANBus, 2-Ch, DB9, PCIe Interface
MOS-1110Y-0101E
Isolated 16 DI/8 DO, 1-Ch, DB37, PCIe Interface
MOS-2120-Z1201
Dual Intel I210 GbE LAN iDoor, 2-Ch, PCIe Interface
MOS-2230-Z1201E
CANBus module, 2-Ch, USB Interface
MIOE-PWR2-00A1E
9-36V DC input power module
AMO-2201E (2nd Layer)
4 x RS232/422/485 + removable 2.5" drive

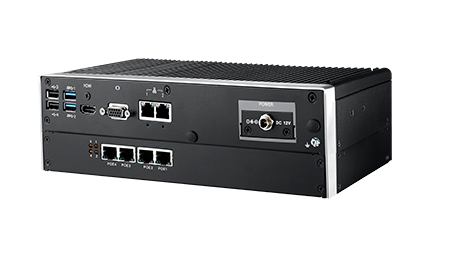

AMO-2202E (2nd Layer)
4x10/100/1000Base T(X) PoE
AMO-2203E (2nd Layer)
2-Port isolated CAN-Bus
AMO-2204E (2nd Layer)
3-port GbE + iDoor
