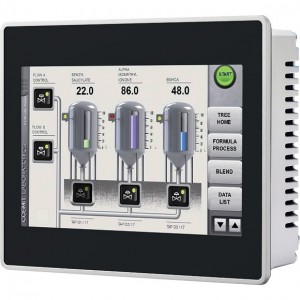

Panel PC eTOP507 - Nexcom 7 pouces TFT WVGA HMI avec interfaces ethernet et USB

Panel PC eTOP507 – Nexcom
Panel PC 7 pouces avec interfaces ethernet et USB- Dalle tactile Widescreen TFT WVGA HMI
En tant que partenaire de EXOR International SpA, NEXCOM intègre HMI la solution de EXOR dans sa série Etop HMI. Les produits Etop série 500 combinent les caractéristiques HMI l’état de l’art et de la performance supérieure avec un design exceptionnel. Ils sont le choix idéal pour toutes les applications HMI exigeants, y compris l’usine et de l’automatisation du bâtiment. Le Etop 507 dispose d’un lumineux 7 ” TFT panoramique (16:9) d’affichage avec un rétro-éclairage LED à intensité réglable. JMobile Le logiciel offre des capacités de graphiques vectoriels complète et de nombreuses options de connectivité.
JMobile exécution inclus. Compatibilité totale avec JMobile Studio.
UGS : eTOP507. Catégorie : Panel PC moins de 12 pouces.
Description
7″ TFT color display, LED backlight
800 x 480 pixel (WVGA) resolution, 64K colors
Resistive touchscreen
2 Ethernet ports with switch function
2 USB Host ports
SD Card Slot
Connection to fieldbus systems and I/O using optional plug-in modules
Slim design. Mounting depth less than 50mm
Fiche technique détaillée Panel PC eTOP507 - Nexcom
Panel LED Size: 7″, 16:9Resolution: WVGA 800 x 480Luminance: 300cd/㎡LCD color: 64KActive display area: 7″ diagonalBacklight: LED
System Resources Operating System: Microsoft Windows CE6.0User Memory: 128MB FlashRAM: 256MB DDR
Operator Interface Touchscreen: Analog resistiveLED indicators: 1 (dual color)
Interface Ethernet: 2 10/100Mbit with integrated SwitchUSB: 2 Host Interface (1 version 2.0, 1 version 2.0 and 1.1)Serial: RS232/422/485 software configurationExpansion Slot: 2 Optional plug-inMemory Card: SD Card Slot
Functionality Vector Graphic: Yes, includes SVG supportObject dynamics: Yes, Visibility, opacity, position, size, rotation for most object typesTrueType Font: YesMultiple driver communication: YesData acquisition and trend presentation: Yes, Flash memory storage limited only by available memoryMultilanguage: Yes, with runtime language switchingRecipes: Yes, Flash memory storage limited only by available memoryAlarms: YesHistorical event list: YesUsers and Passwords: YesHardware Real Time Clock: Yes, with battery back-upScreen saver: YesBuzzer: Yes, audible feedback for touch screen
Ratings Power supply voltage: 24Vdc (10 to 32 Vdc)Current consumption: 0.65A at 24Vdc (max.)Fuse: AutomaticWeight: Approx. 1KgBattery: Rechargeable Lithium battery, not user-replaceable
Environmental Conditions Operating temperature: 0°C to 50°C (vertical installation)Storage temperature: -20°C to 70°COperating and storage humidity: 5% ~ 85% relative humidity, noncondensingProtection class: IP66 (front), IP20 (rear)
Dimensions Faceplate LxH: 187 x 147mmCutout AxB: 176 x 136mmDepth D+T: 47 + 4mm
Certifications CE (Emission EN61000-6-4; Immunity EN61000-6-2 for installation in industrial environments)DNV Type Approval CertificatecULus (UL508 Listed Haz. Loc. Class I, Division 2, Group A,B,C, and D)C-TickGL (Germanischer Lloyd Type Approval Certificate)
