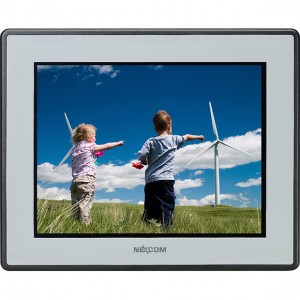

Panel PC – APPC0820T Ver. B – Nexcom
Panel PC 8 pouces - Intel Atom D525 1.8 GHz, 1GB, module DDR3 avec deux ports COM et Audio
Le panel PC ultra fin APPC 0820TC est un modèle industriel plus mince pour les applications spécifiques, comme le contrôle d’accès, les petites machines d’automatisation, chariot élévateur et camion etc…
UGS : APPC0820T Ver. B. Catégorie : Panel PC moins de 12 pouces.
Description
- 4:3 8″ Fanless Panel Computer
- Intel® Atom™ D525, Dual Core, Low Consumption CPU
- Flush Panel by 5-wire Touch Screen
- Dual GbE/ 2nd display-VGA/ Line-in/ Line-out/ MIC-in/ PS2 KB/MS
- USB x 4/ 1 x mini-PCIe sockets/ 1 x CF
- 1 x RS232/ 1 x RS-232/ 422/ 485/ 1 x GPIO
- DDR3 1GB / 2.5″ HDD Bracket
- Optional Wi-Fi Module / 2.5″ HDD
- IP65 Compliant Front Panel
- Mounting Support: Panel/ Wall/ Stand/ VESA 100mm x 100mm
Fiche technique
- Panel
LCD Size: 8″, 4:3
Resolution: SVGA 800×600
Luminance: 400cd/m2
Contrast ratio: 500
LCD color: 262K
Viewing angle: 50(U), 70(D), 70(L), 70(R)
Backlight: LED
Touch screen
- 5-wire resistive (flush panel type)
Light transmission: 82%
Interface: USB
System
- CPU: Intel® Atom™ D525, 1.8GHz
BIOS: AMI BIOS
System chipset: Intel® ICH8M
System memory: 1x 204-pin DDR3 SO-DIMM socket, 1G DDR3 (Default), Support up to 2GB DDR3 800, Non-ECC and Un-buffered
Storage:
APPC 0820TC: (Choice of one)
‧SSD: CF socket by IDE support Type I/II compact Flash card (SATA to CF converter board (Optional))
‧Hard drive bay: optional 2.5″ SATA HDD
‧SATA DOM (Optional)
APPC 0820T: (Choice of one)
‧SSD: CF socket by IDE support Type I/II compact Flash card (Build in SATA to CF converter board)
‧Hard drive bay: optional 2.5″ SATA HDD
‧SATA DOM (Optional)
‧HDD and choice of CF or SATA DOM
Watchdog timer: Watchdog timeout can be programmable by software from 1 second to 255 seconds and from 1 minute to 255 minutes (Tolerance 15% under room temperature 25°C)
H/W status monitor: Monitoring system temperature, and voltage
Expansion: 1x Mini-PCIe sockets
Rear I/O
APPC 0820TC:
COM #1: RS232
Ethernet: 2 x RJ45
2nd display VGA port: 1 x DB15
Audio port: 1 x Line out
USB: 2 x USB 2.0
Power switch
Reset button
APPC 0820T:
GPIO: 4 x digital in / 4 x digital out
COM #1: RS232
COM #2: RS232/422/485
Ethernet: 2 x RJ45
2nd display VGA port: 1 x DB15
Audio port: 1 x Line out; 1 x Line in; 1 x MIC-in
USB: 4 x USB 2.0
PS2 keyboard/ mouse
Power switch
Reset button
Audio
- AC97 codec: Realtek ALC888
Audio interface: Line out/Line in/MIC-in Audio Jack
Ethernet
- LAN chip: dual Intel® 82574L Gigabit LAN
Ethernet interface: 10/100/1000 Based-Tx Ethernet compatible
Mechanical & Environment
- Color: pantone black
IP protection: IP65 front
Mounting: panel/ wall/ stand/ VESA 100mm x 100mm
Power input: 12V DC
Power adapter: Optional AC to DC power adaptor (+12V, 60W)
Vibration:
IEC 68 2-64 (w/ HDD)
0.5Grms @sine, 5~500Hz, 1hr/axis (HDD Operating)
2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (Non-operating)
Shock:
IEC 68 2-27
HDD: 20G@wall mount, half sine, 11ms
Operating temperature: -5°C to 50°C
Storage temperature: -20°C to 75°C
Operating humidity: 10%~90% relative humidity, non-condensing
Dimension:
APPC0820T: 217.4 x 176.4 x 61.9 mm
APPC0820TC: 217.4 x 176.4 x 46.7 mm
Weight:
APPC0820T: 2Kg
APPC0820TC: 1.7Kg
Certifications
- CE approval
FCC Class A
