KVM Extender - 4K 60Hz, HDMI 1.4, USB 2.0, CAT5e/6/6A

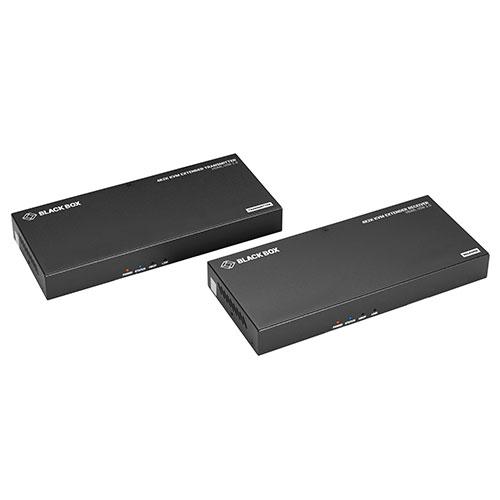

Transmit 4K60 HDMI signals up to 100 meters over CAT5e, CAT6 and CAT6A cable. Use the KVM Extenders to send high-resolution 4K at 60Hz (4:2:0 8-bit) video as well as signals for USB keyboards, mice, and other human interface devices (HID), and power and control signals. The extender includes a local unit that attaches to the CPU and a remote unit that connects the user's KVM console. But you can also plug in a monitor on the local side - which is great for monitoring and administration right at the computer. Requires only one power supply. Video Impedance - 100-Ohms
Audio/Video Signal -
Transmitter
Input: HDMI 1.4, video level: 0.5~1.0V p-p,
Output (1) RJ45, (1) 3.5-mm stereo;
Receiver
Input: RJ45, video level: 0.5~1.0V p-p,
Output: (1) HDMI 1.4, (1) 3.5-mm stereo
Pixel Clock 297-MHz
Resolutions Supported
4096x2160@24/25/330/50/60Hz;
380x2160@24/25/30/50/60Hz;
Up to 1080p
Audio Support
Transmitter: Input: 3.5-mm stereo pass through; Output: 3.5-mm stereo pass through;
Receiver: Input: 3.5-mm stereo pass through; Output: 3.5-mm stereo pass through

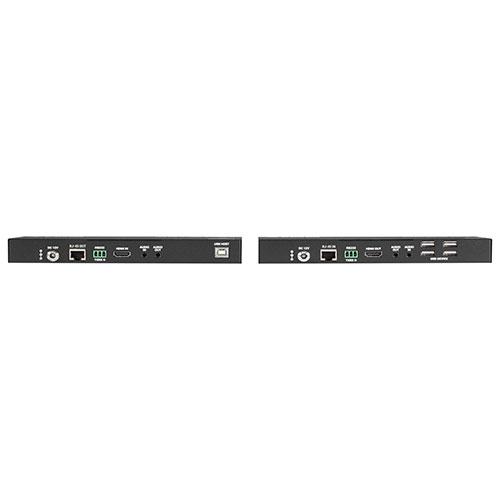

Connectors
Transmitter:
(1) HDMI,
(2) 3.5 mm stereo (in and out),
(1) USB Type B female input,
(1) RJ-45, (link)
(1) 3-position Phoenix (power)
Receiver:
(1) HDMI,
(2) 3.5 mm stereo (in and out),
(4) USB Type A female,
(1) RJ-45 (link),
(1) 3-position Phoenix (power)
Distance
CAT5e: 3840x2160 @ 90 m; 1080p @100 m;
CAT6/CAT6A: 3840x2160@100 m; 1080p @ 100 m
Power 12 VDC power supply
Operating Humidity 10-90%, non-condensing
Operating Temperature 0 to + 45°C (32 to + 113 °F)
Storage Temperature -20 to +70°C (-4 to + 158 °F)
Dimensions
Receiver: 2.5H x 9W x 20.8D cm ( 0.99"H x 8.22"W x 3.6"D)
Transmitter: 2.5H x 9W x 20.8D cm (0.99"H x 8.22"W x 3.6"D)
Weight
Receiver: 0.16 kg (1 lb.)
Transmitter: 0.16 kg (1 lb.) (1) Transmitter
(1) Receiver
(1) 12VDC, 2A Power Supply
(4) Power Cords (US, UK, EU, AU)
(2) 3-Pin Phoenix Connectors
(2) Mounting Brackets + 4 Screws Extend uncompressed 4Kx2K at 60Hz and 1080p at 60Hz up to 100 meters over CAT6, CAT6A cables and up to 90 meters over CAT5 cable; Transmit video, analog stereo, power, RS-232 and USB 2.0 signals; With integrated 48V PoC, only one power supply is needed to power both units; Locking power supply prevents the power from being accidentally disconnected; An analog audio pass through from Transmitter to Receiver; HDMI 1.4 Compliance; Four USB Type-A inputs for keyboard, mouse, or additional peripherals; Garantie: 3 ans Double Diamond™ Garantie (par défaut);
