![GOND NYLON, A ARTICULATION DEPORTEE - DROITE (37-64)_0](https://www.hellopro.fr/images/produit-2/8/2/1/gond-nylon-a-articulation-deportee-droite-37-64-559128.jpg)

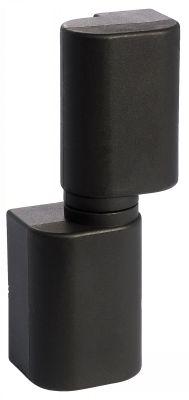

GOND NYLON, A ARTICULATION DEPORTEE - DROITE (37-64)
![GOND NYLON, A ARTICULATION DEPORTEE - DROITE (37-64)_0](https://www.hellopro.fr/images/produit-2/8/2/1/gond-nylon-a-articulation-deportee-droite-37-64-559128.jpg)
Description
MATIERE - Nylon noir chargé de fibres de verre. - Livré sans visserie. UTILISATION - Longueur des vis : épaisseur de porte + 6,5 à 9,5 mm pour h1 = 58. - Longueur des vis : épaisseur de porte + 9,5 à 12,7 mm pour h1 = 78. - Couple maximum de serrage des vis de montage : 2,8 N.m pour h1 = 58 et 5,6 N.m pour h1 = 78. MONTAGE - Préparer la porte et le châssis comme illustré. - Fixer les deux parties du gond sur leurs supports respectifs.
Besoin de plusieurs devis pour comparer ?
Gagnez du temps avec la demande groupée.
Application des charnières : * Vous devez sélectionner une réponse avant de valider
