Compact servo motors / servo moteurs brushless et moteurs couple stampa

COMPACT SERVO MOTORS / Servo Moteurs Brushless et Moteurs Couple stampa
Dedicated mechanical fittings
Focus on robotics applications

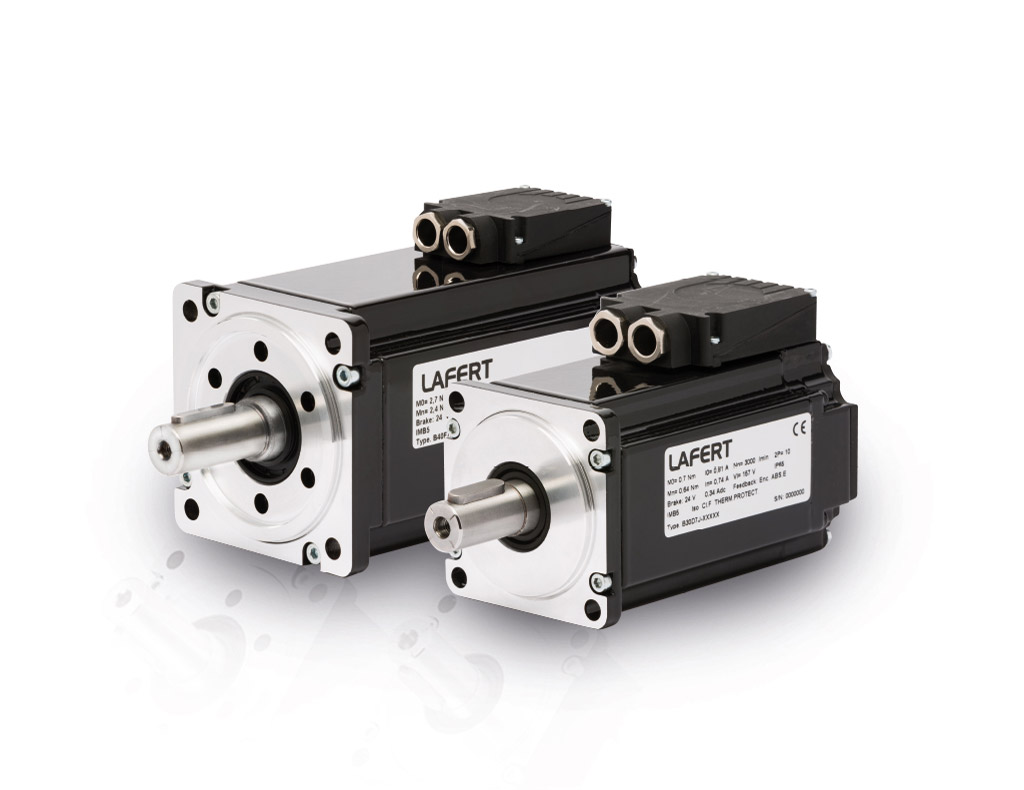

A brand new range of Compact Brushless Servo Motors engineered to meet high dynamics in challenging applications.
Compact Brushless Servo Motors with dedicated mechanical fittings, reduced dimensions and special electrical design for high performance:
? Range: 0.32 Nm ? 55 Nm (100W ? 7.5kW)
? Square flange 40 mm, 60 mm, 80 mm, 100 mm, 130 mm, 180 mm
? Smaller sizes equipped with special connection box with reduced overall dimensions; bigger sizes equipped with standard connectors (90° turnable connectors)
? Focus on robotics applications.
Spécifications standard
- Outstanding compact design with high power density
- Torque range 0.32 Nm to 55 Nm
- Superior performance, high torque accuracy
- Middle-high inertia ideal for robotics and machine tools
- Available at 230 Vac and 400 Vac
- IP65 protection; TENV construction
Options
- All motors available with brake as an option
- Special winding design available on request
- Different type of encoder and resolver available on request
