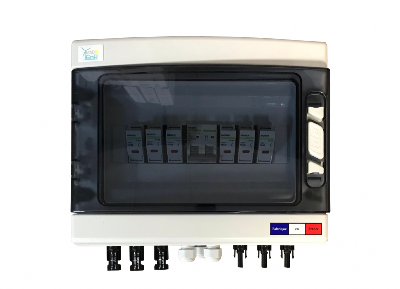

Coffret de protection et mise en parallèle dc 3 lignes
![Coffret de protection et mise en parallèle dc 3 lignes_0](https://www.hellopro.fr/images/produit-2/1/5/9/coffret-de-protection-et-mise-en-paralla-le-dc-3-lignes-7818951.png)
Description
Le coffret de protection DC 3 lignes permettra la protection et la mise en parallèle de vos lignes de panneaux solaires.
Il dispose de 3 entrées pour pôle positif et 3 entrées pour pôle négatif pour connecter vos strings de panneaux. La protection se fait par sectionneur fusible à tiroir réarmable.
Chaque sectionneur est équipé d'un fusible 12A courant continu. (remplaçable jusqu'à 63A). Les lignes de panneaux solaires sont ensuite mise en parallèle à l'intérieur du coffret pour n'avoir qu'une sortie presse-étoupes.
Voici la composition du coffret :
DONNÉES TECHNIQUES
Voici la composition du coffret :
- 1 coffret modulaire IP55.
- 6 sectionneurs à tiroirs.
- Fusibles cartouches 12A courant continu inclus.
- 6 entrées sur connecteurs DC MC4 pour faciliter la connexion.
- 1 sortie connecteurs presse-étoupes.
- 1 lot d'étiquettes normalisées UTE.
DONNÉES TECHNIQUES
- Étanchéité: IP55
- Température d'utilisation: -25 à + 50°C
- Tension admissible: 500VDC
- Dimensions: 445mm x 285mm x 110mm
- Disjoncteur: DC 63A
- Utilisation: Courant continu
- Garantie: 2 ans
Besoin de plusieurs devis pour comparer ?
Gagnez du temps avec la demande groupée.
Utilisation du coffret de protection :
