![CHARNIERE DEBOITABLE ACIER (37-30)_0](https://www.hellopro.fr/images/produit-2/4/9/0/charniere-deboitable-acier-37-30-559094.jpg)

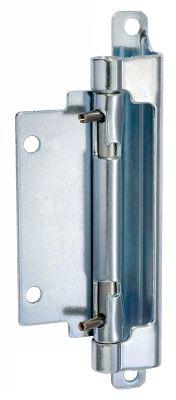

CHARNIERE DEBOITABLE ACIER (37-30)
![CHARNIERE DEBOITABLE ACIER (37-30)_0](https://www.hellopro.fr/images/produit-2/4/9/0/charniere-deboitable-acier-37-30-559094.jpg)
Description
MATIERE - Charnière en acier XC 10 zingué - Axes en acier zingué. - Goupilles de libération et ressort interne en inox. UTILISATION - Sélectionner la charnière en fonction de la côte h1. - h1 + 0,6 = distance de la face extérieure du châssis à la face interne de la porte. MONTAGE - Préparer la porte comme illustré. 1ère méthode - Monter la charnière assemblée à l'intérieur de la porte. - Positionner la porte contre le châssis et fixer. 2ème méthode - Monter les lames de porte et de châssis sur leur support. - Positionner la porte contre le châssis, aligner les 2 lames et actionner les goupilles de fixation.
Besoin de plusieurs devis pour comparer ?
Gagnez du temps avec la demande groupée.
Application des charnières : * Vous devez sélectionner une réponse avant de valider
